Q U A L I T Y
Company - 1

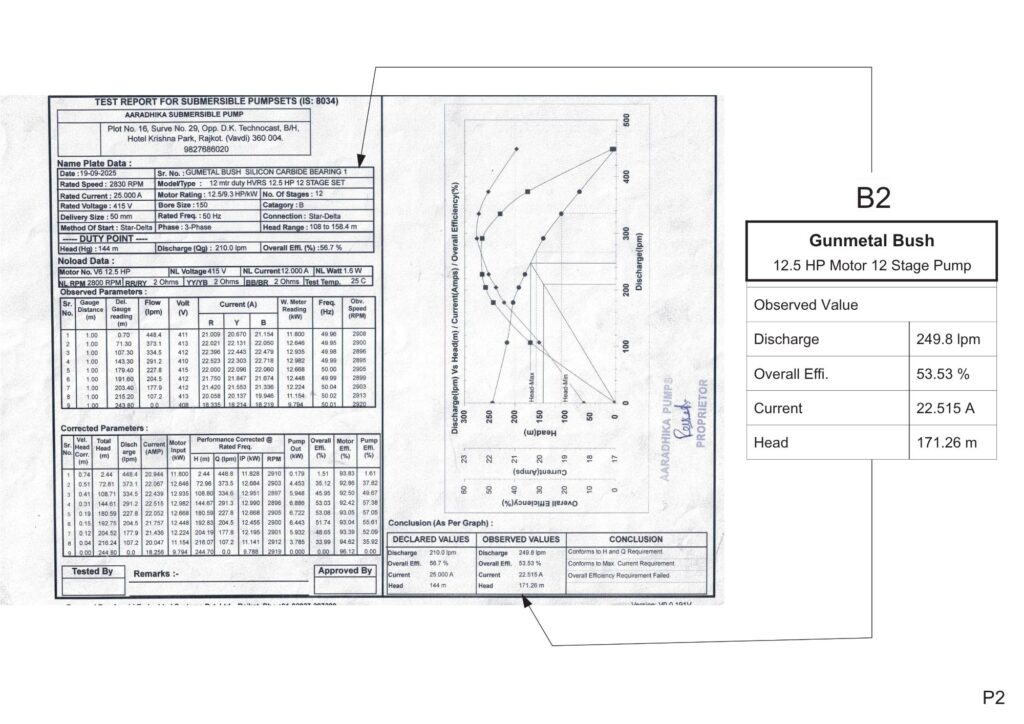

Perfomance Test : Meral Metal Covered Carbon Bush VS Conventional Gunmetal Bush and Standard Carbon Bush

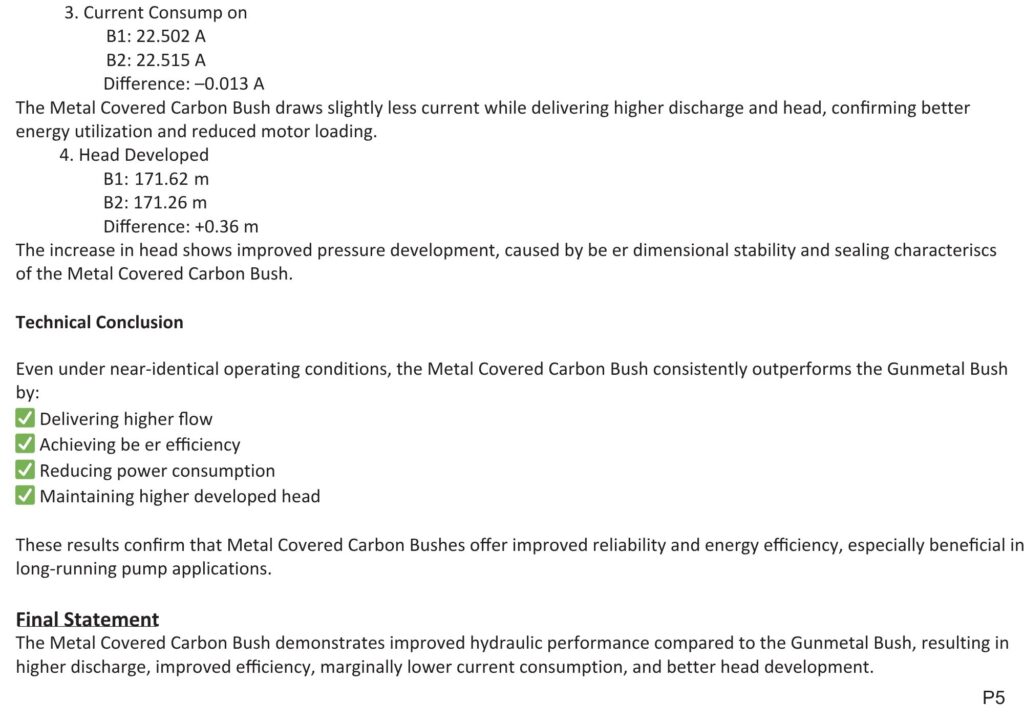

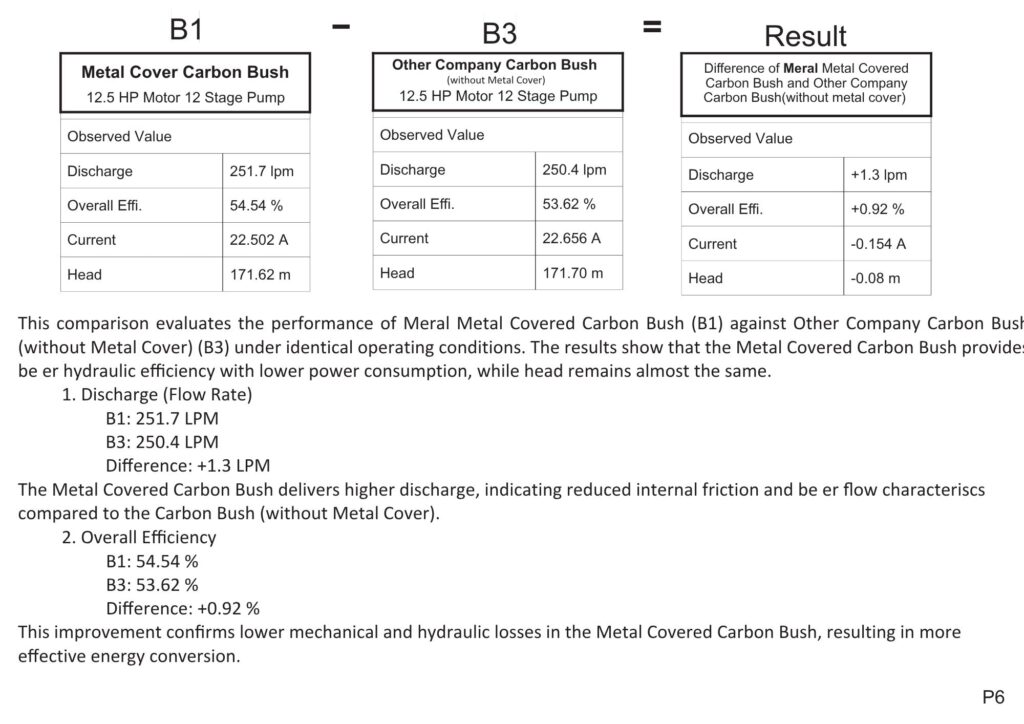

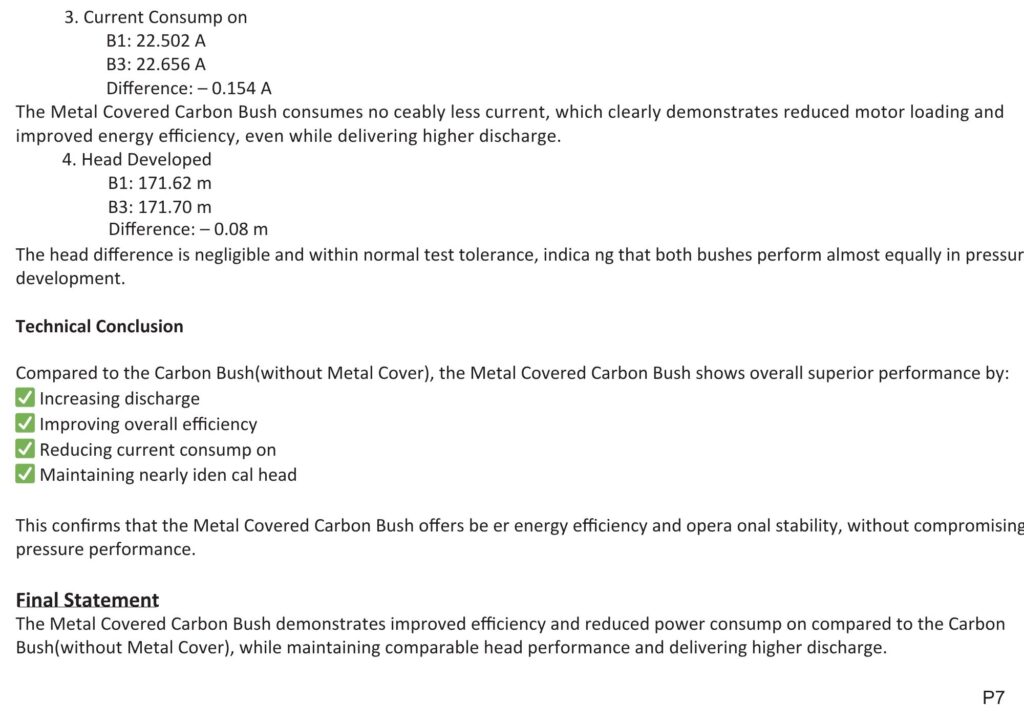

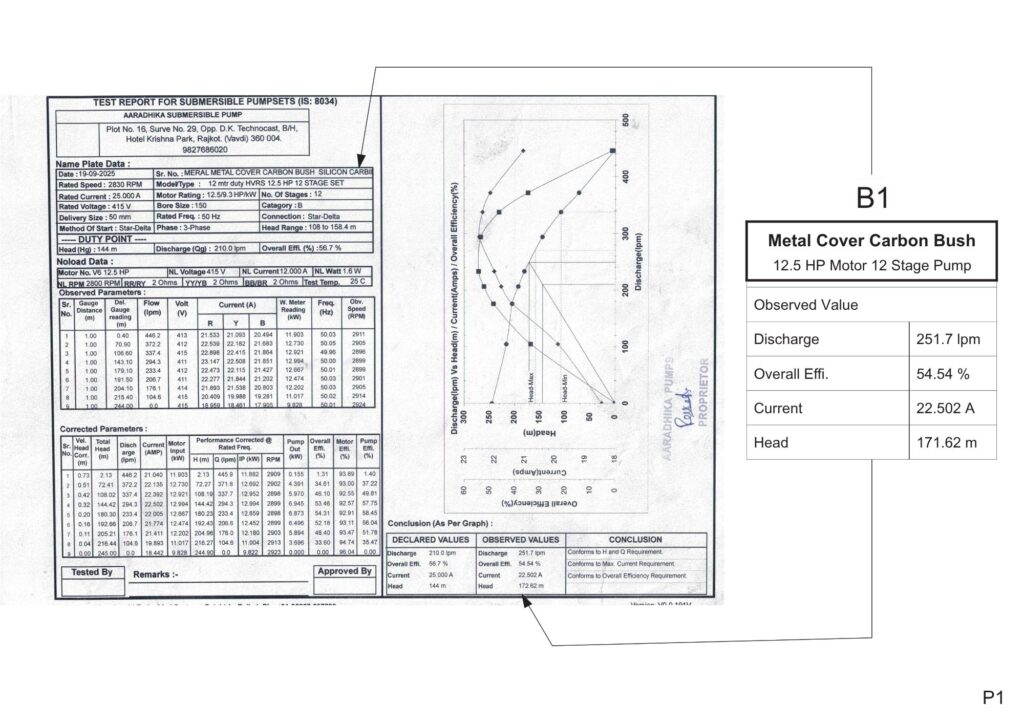

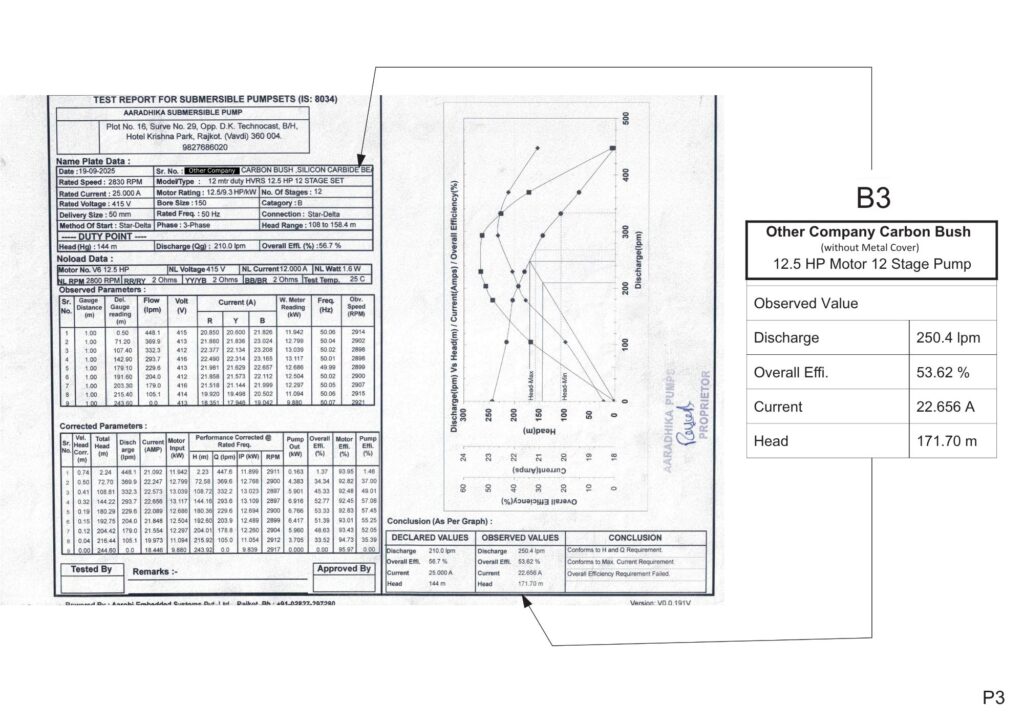

At Meral Powder Metallurgy Pvt. Ltd., our component performance is validated through comparative testing under real operating conditions in working submersible pump systems. A controlled performance evaluation conducted on a 12.5 HP, 12-stage pump demonstrates the measurable advantages of the Meral Metal Covered Carbon Bush over both conventional Gunmetal Bush and standard market Carbon Bush alternatives.

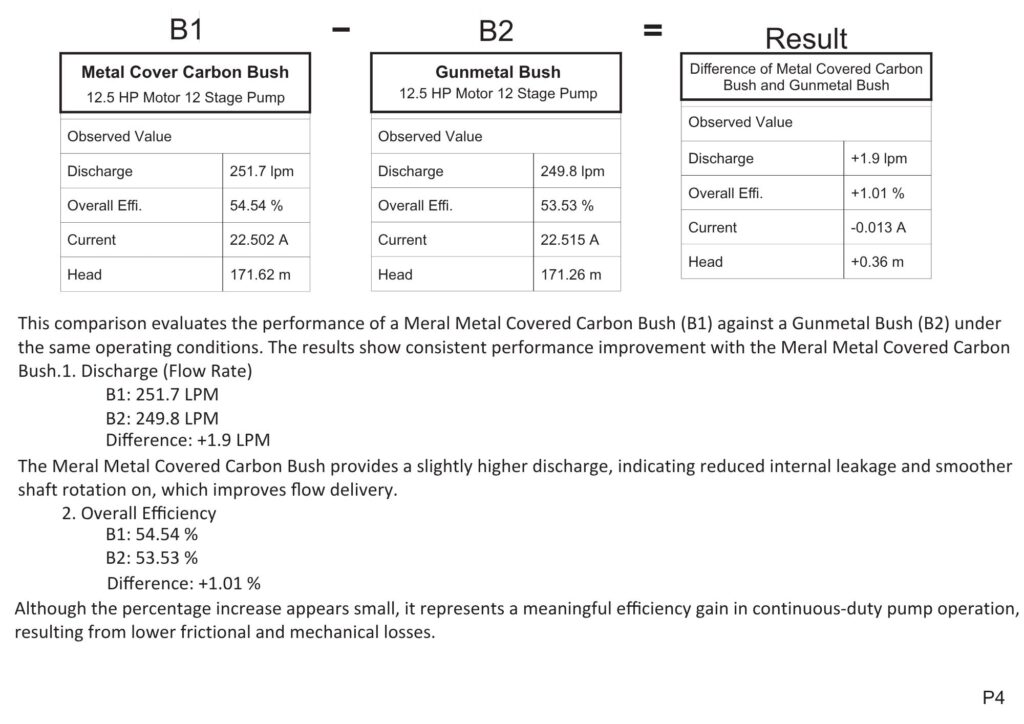

The test results confirmed higher discharge performance (+1.9 LPM compared to Gunmetal Bush and +1.3 LPM compared to standard Carbon Bush), improved overall efficiency (up to +1.01%), and reduced current consumption (up to −0.154 Amp), while maintaining stable head performance within normal operating tolerance.
These improvements indicate reduced internal friction losses, better dimensional stability during operation, and improved hydraulic efficiency inside the pump assembly. The results clearly establish that Meral Metal Covered Carbon Bush delivers enhanced energy efficiency, smoother shaft support, and more reliable long-term operating performance compared to conventional bush materials.
Company - 2

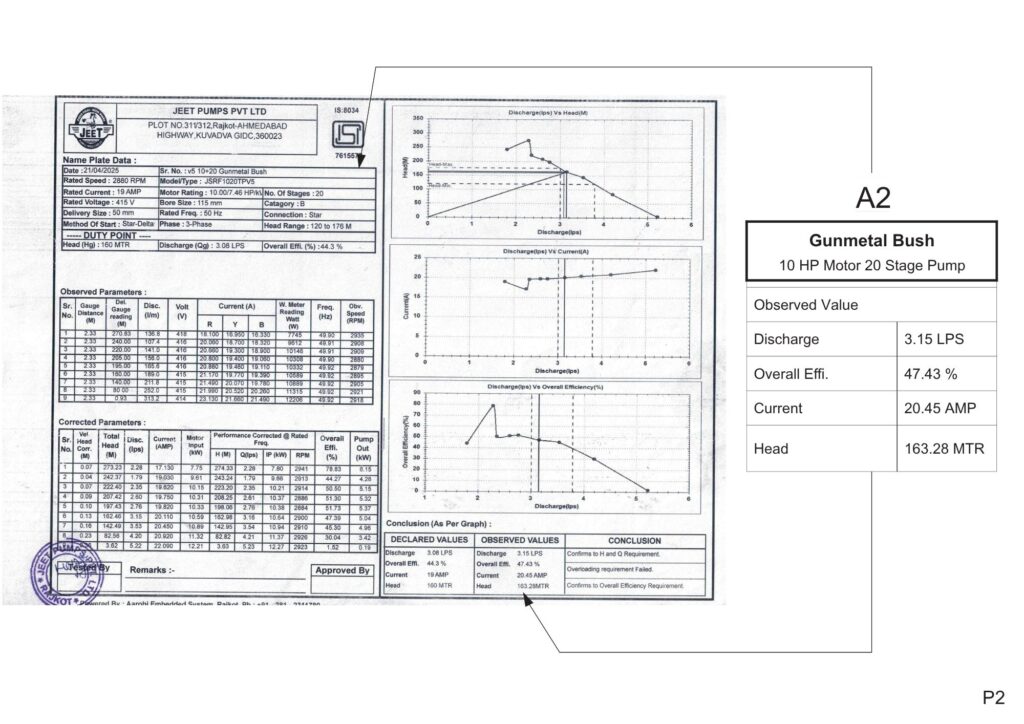

Perfomance Test : Meral Metal Covered Carbon Bush VS Conventional Gunmetal Bush

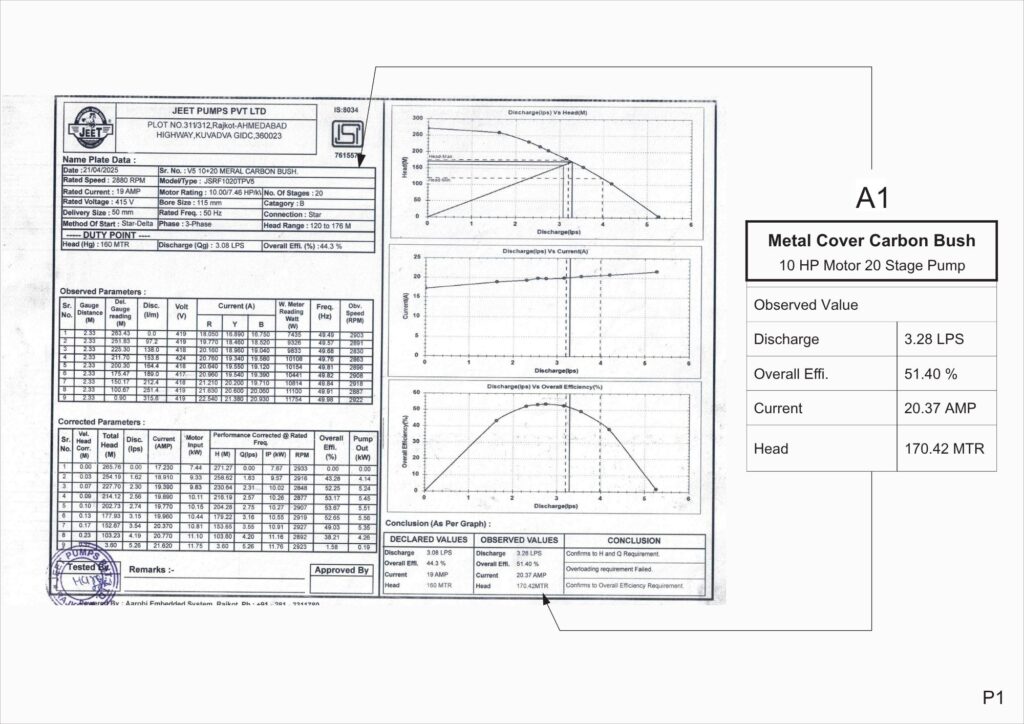

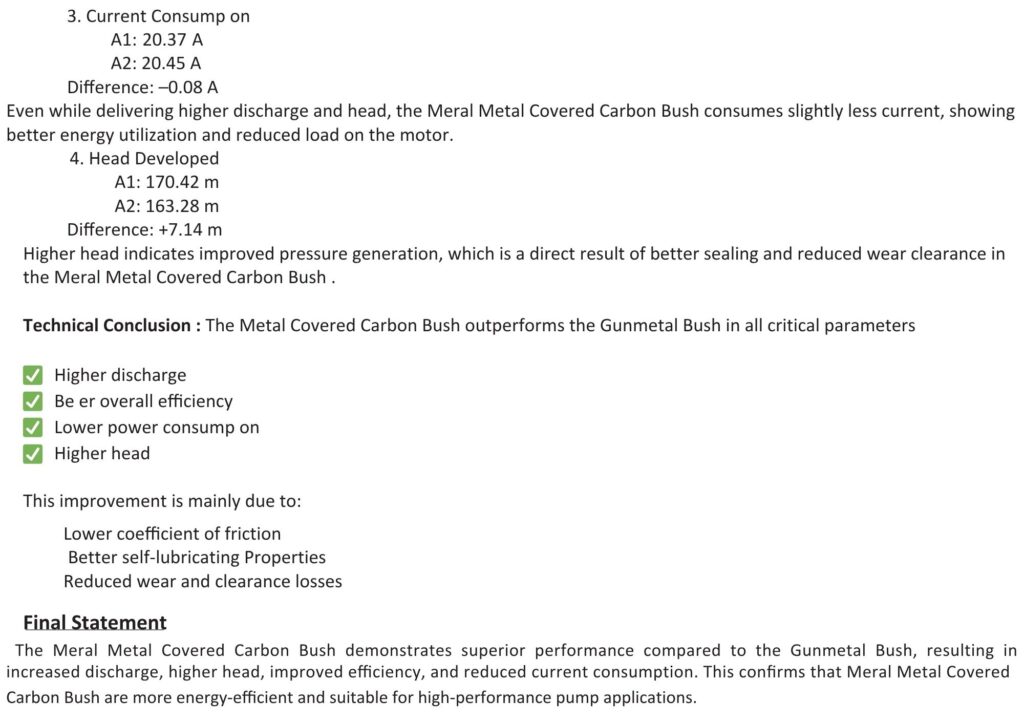

At Meral Powder Metallurgy Pvt. Ltd., our commitment to quality is validated through real pump performance testing under controlled operating conditions. A comparative test conducted on a 10 HP, 20-stage submersible pump clearly demonstrates the measurable advantages of the Meral Metal Covered Carbon Bush over a conventional Gunmetal Bush.

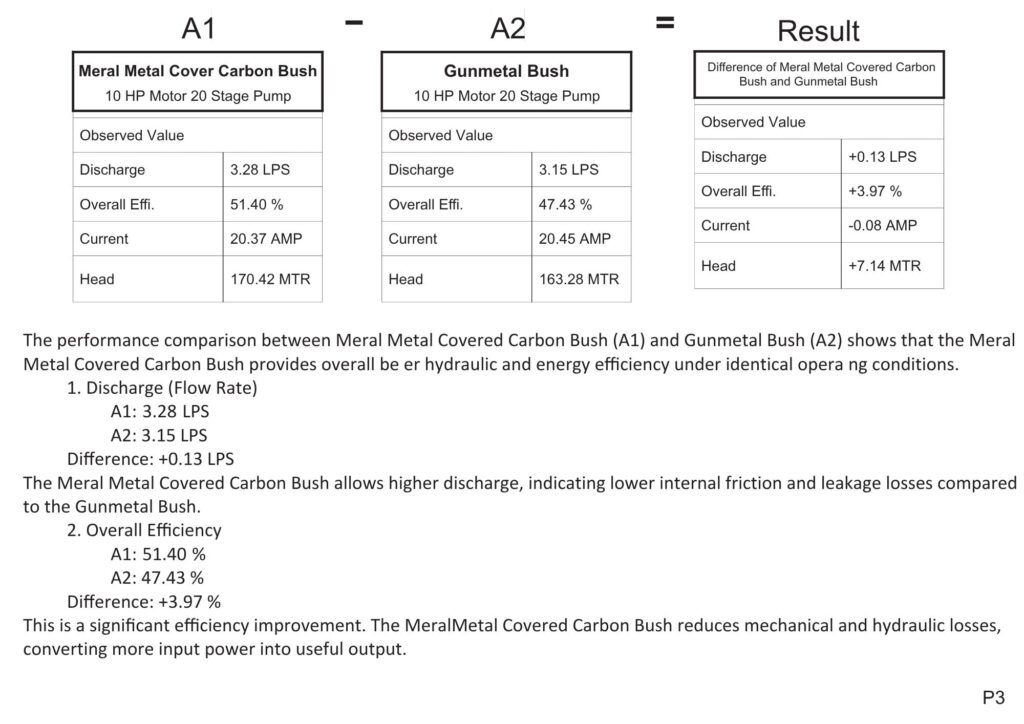

The testing results confirmed higher discharge (+0.13 LPS), improved overall pump efficiency (+3.97%), reduced current consumption (−0.08 Amp), and increased developed head (+7.14 meters). These improvements indicate lower internal friction, better sealing performance, and reduced wear clearance during operation.
The results prove that Meral Metal Covered Carbon Bush enhances hydraulic performance while reducing energy consumption and mechanical losses, making it a more efficient and reliable solution for high-performance submersible pump applications.
Field Perfomance validation - Pumps Running With Meral Carbon Bush
Meral Carbon Bushes are actively operating inside field-installed submersible pump systems across multiple configurations and working environments. The following field performance videos demonstrate strong and consistent water discharge from pumps operating with Meral Carbon Bush under real working conditions, including operation in muddy water environments.
These installations highlight the ability of Meral Carbon Bush to support reliable pump performance where stable flow output and operating consistency are essential. The observed discharge behavior reflects the effective running characteristics and operational suitability of Meral bushes inside working submersible pump assemblies.
In addition to controlled performance comparisons with conventional Gunmetal Bush and standard market Carbon Bush alternatives, these real-world installation results provide practical validation of the efficiency and reliability delivered by Meral Carbon Bush in demanding field applications. The successful operation across multiple pump setups confirms their suitability for long-term service performance and dependable operation in actual installation conditions.
Quality Assurance
Meral Powder Metallurgy Pvt. Ltd. is committed to maintaining high standards of quality in every product we manufacture. Our quality assurance process focuses on ensuring consistency, reliability, and precision throughout the production process.
Every stage of manufacturing is carefully monitored to maintain strict quality standards in submersible thrust bearing , Metal Covered Carbon Bush (Patent Pending Product) and Carbon Bush . Our goal is to deliver products that meet industry expectations for durability, performance, and dimensional accuracy.
Quality Control
Quality is the foundation of Meral Powder Metallurgy Pvt. Ltd. Throughout the manufacturing process, our products undergo rigorous quality checks to ensure their physical, mechanical, and performance properties meet required standards.
Our quality control process includes testing of key material and performance parameters such as:
• Bulk Density
• Apparent Porosity
• Water Absorption
• Transverse Strength
• Shore D Hardness
• Moisture Content
• Thermal Conductivity
• Resistance to Wear
• Compressive Strength
These tests help us maintain consistent product quality and ensure dependable performance in submersible pump applications.
Our Quality Philosophy
Quality at Meral is driven by process control rather than correction.
Every component is manufactured with a focus on durability, dimensional accuracy, and long service life under real operating conditions.
✔ Quality-first manufacturing culture
✔ Process-driven production
✔ Application-specific design
✔ Continuous improvement mindset
Raw Material & Process Control
Carefully selected carbon grades suitable for wear-critical applications
Incoming raw material inspection before production
Batch-wise traceability maintained
Defined process parameters at each manufacturing stage
In-Process Quality Assurance
01
Dimensional Accuracy Checks
- Ensuring precise fitment and consistency.
02
Surface Finish Control
- Optimized for wear resistance and performance.
03
Fitment Verification
- Compatibility with mating components.
04
Process Monitoring
- Controlled manufacturing parameters.
Final Inspection & Testing
Before dispatch, every component undergoes a structured inspection process to ensure it meets Meral’s internal quality standards.
Critical dimensional verification
100% Visual Inspection
Functional suitability checks
Packaging and handling verification
Quality at Meral is not a department.
It is embedded in every stage of manufacturing.
